Proposed two concept designs for the SPACEX Crew Dragon - Interior Design

As a design partnership the deliverable involved balancing demanding aesthetics against challenging human factors while respecting the engineering structural arrangement of the cabin.

Two design proposals were delivered on time on a very short schedule. Solving issues such as individual and crew seating, human factors, ingress/egress and in seat control interfaces, habitability and life support systems.

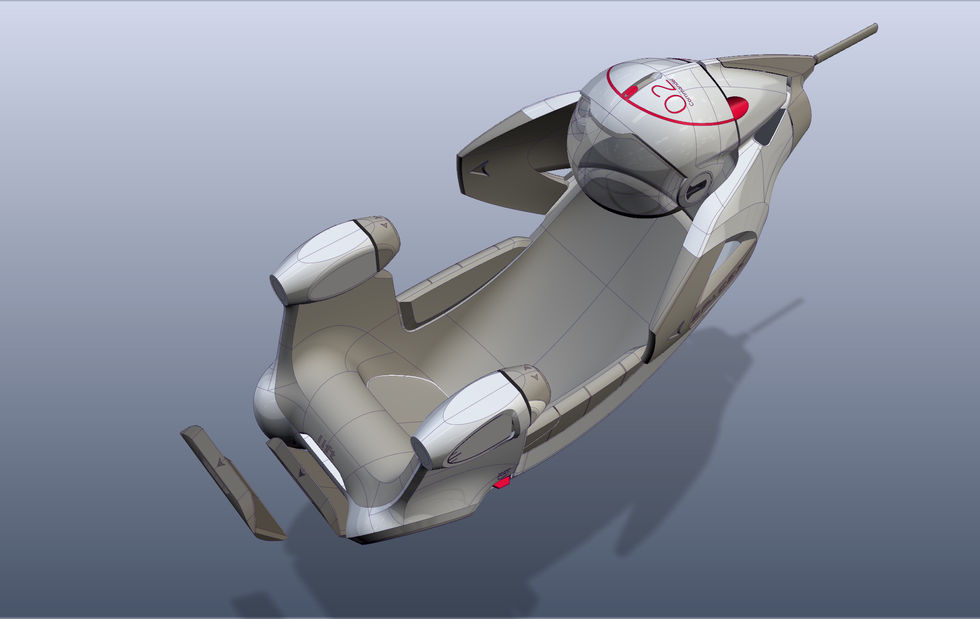

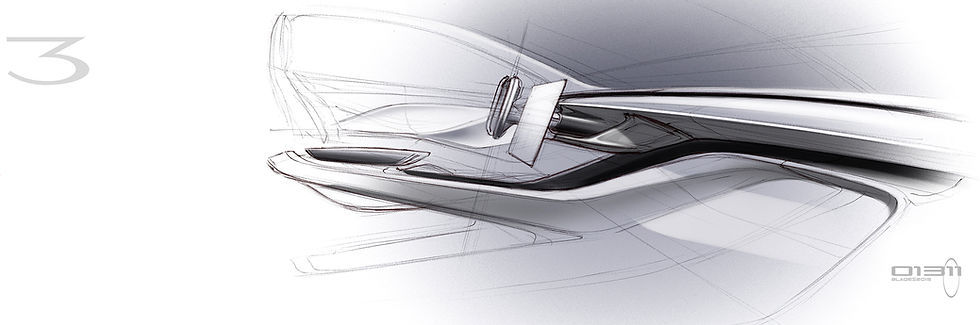

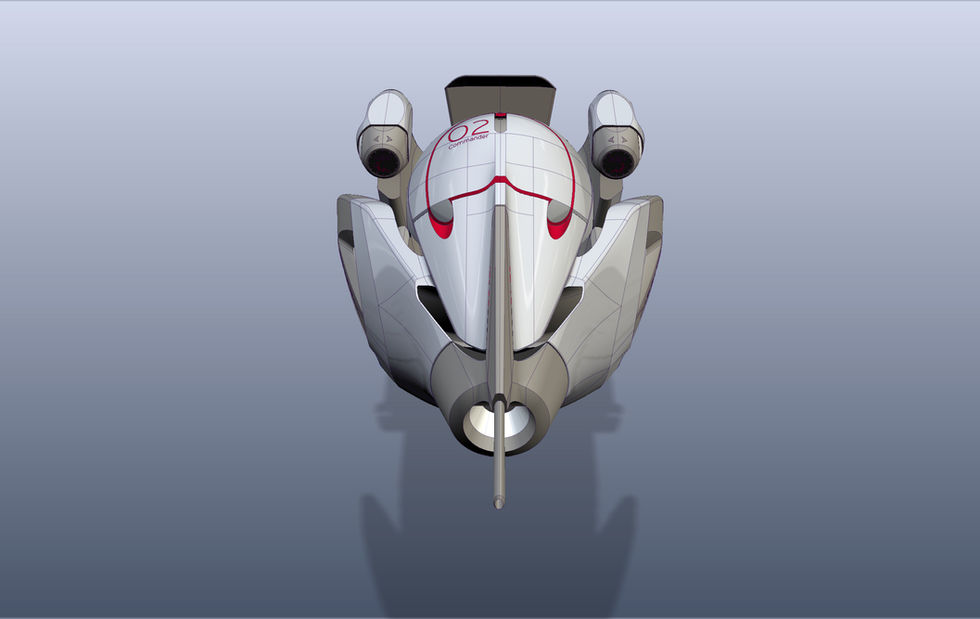

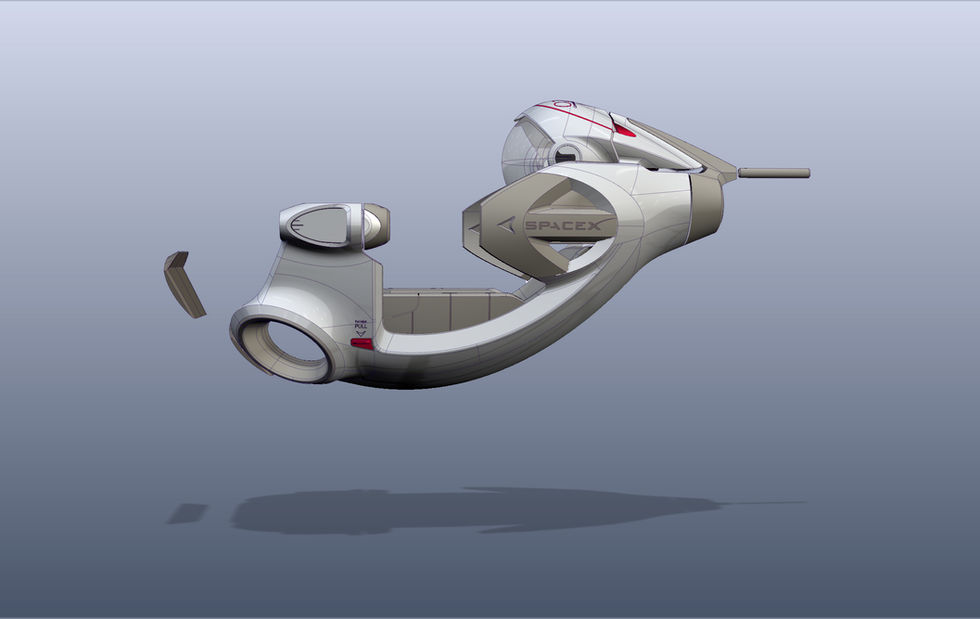

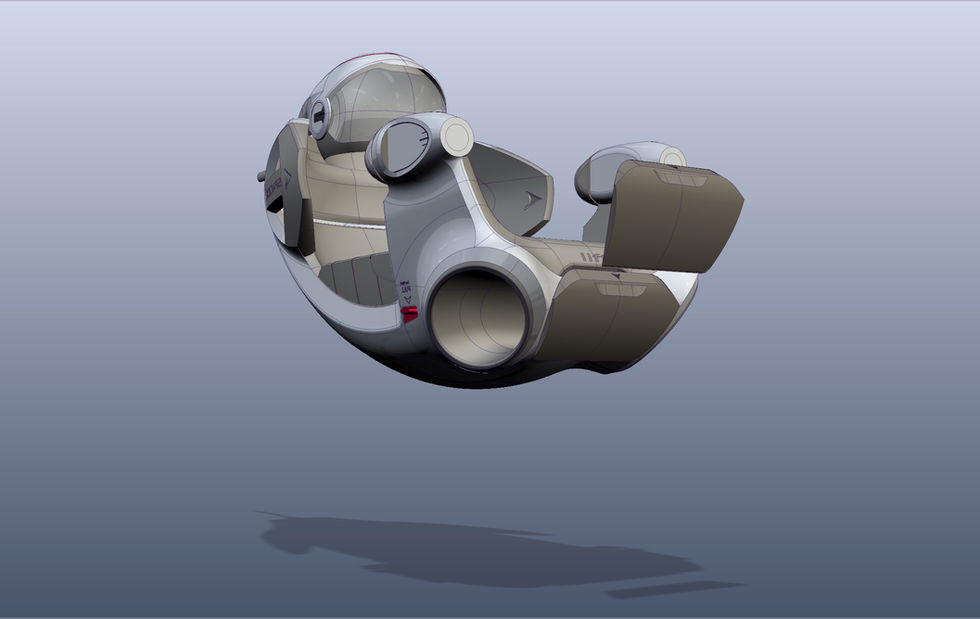

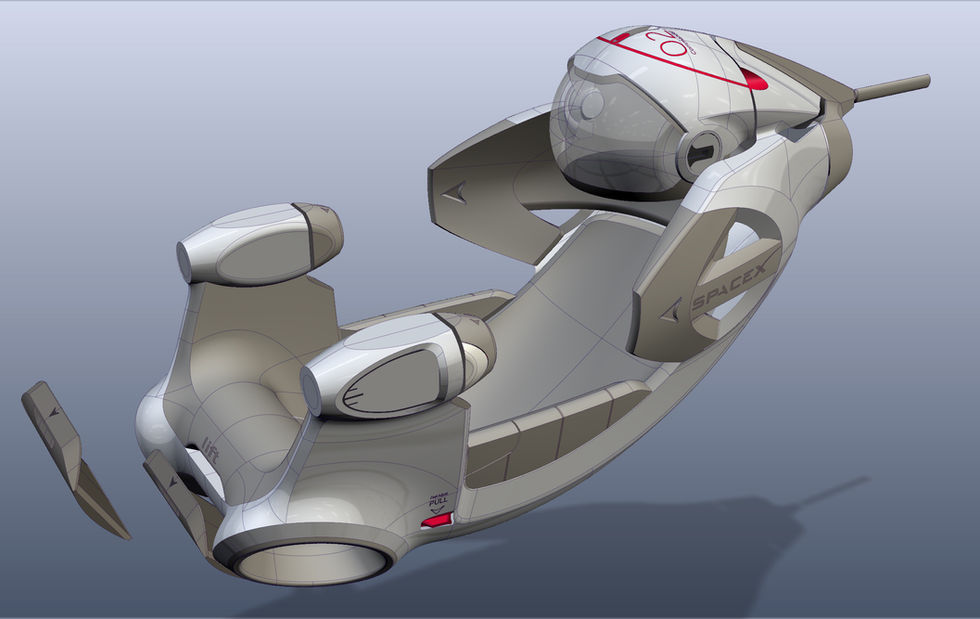

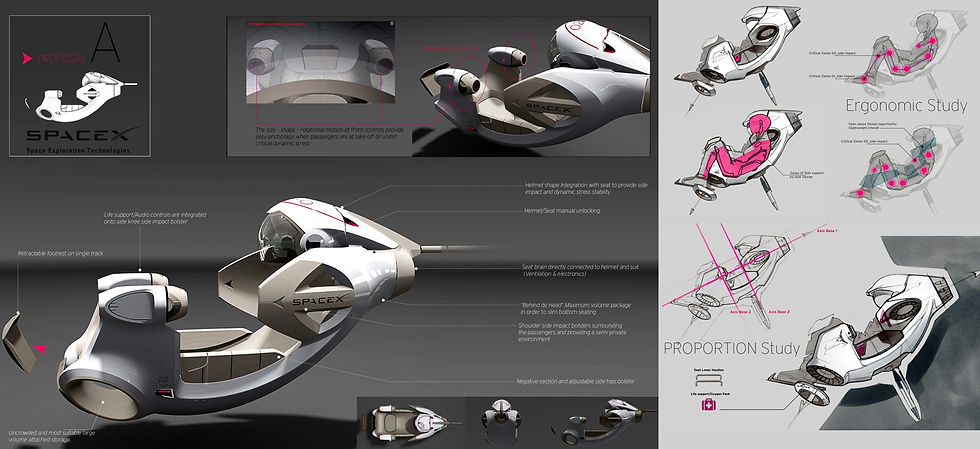

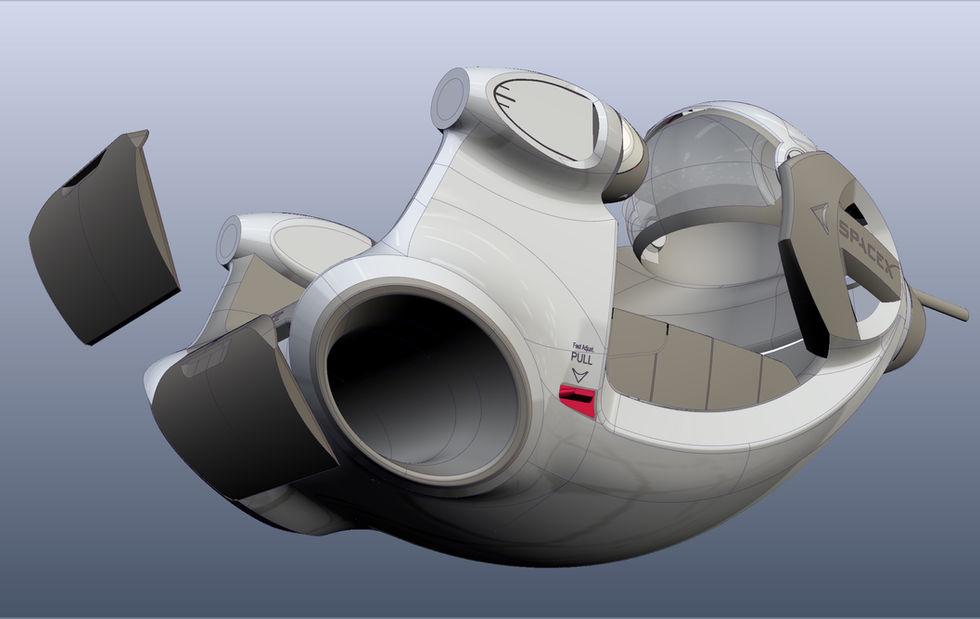

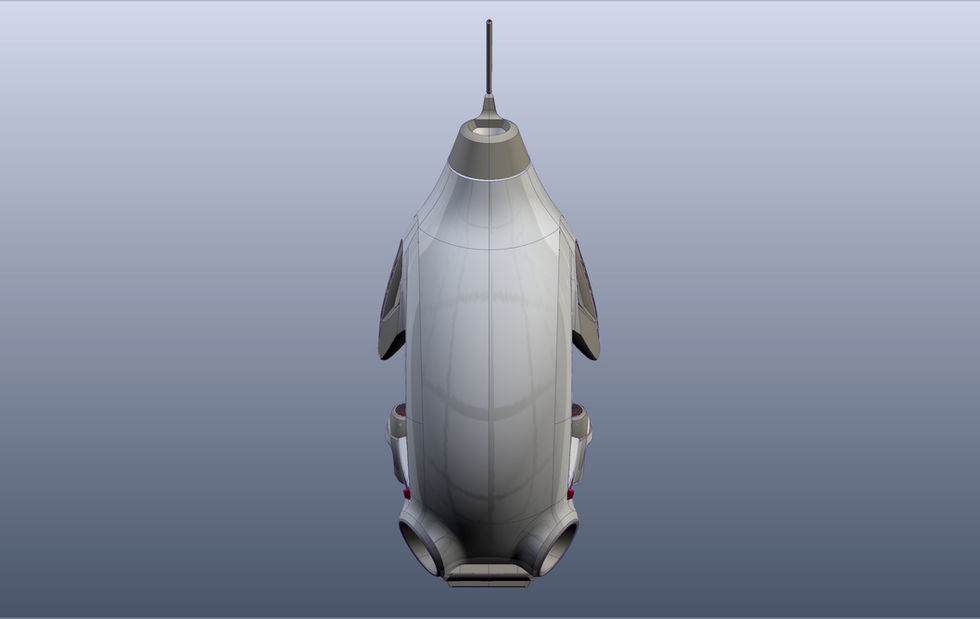

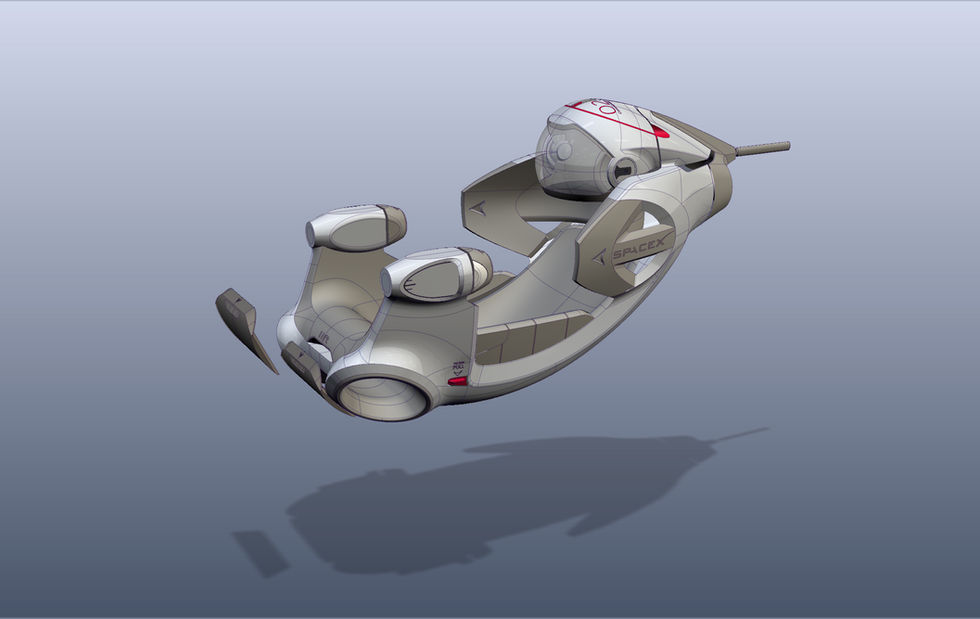

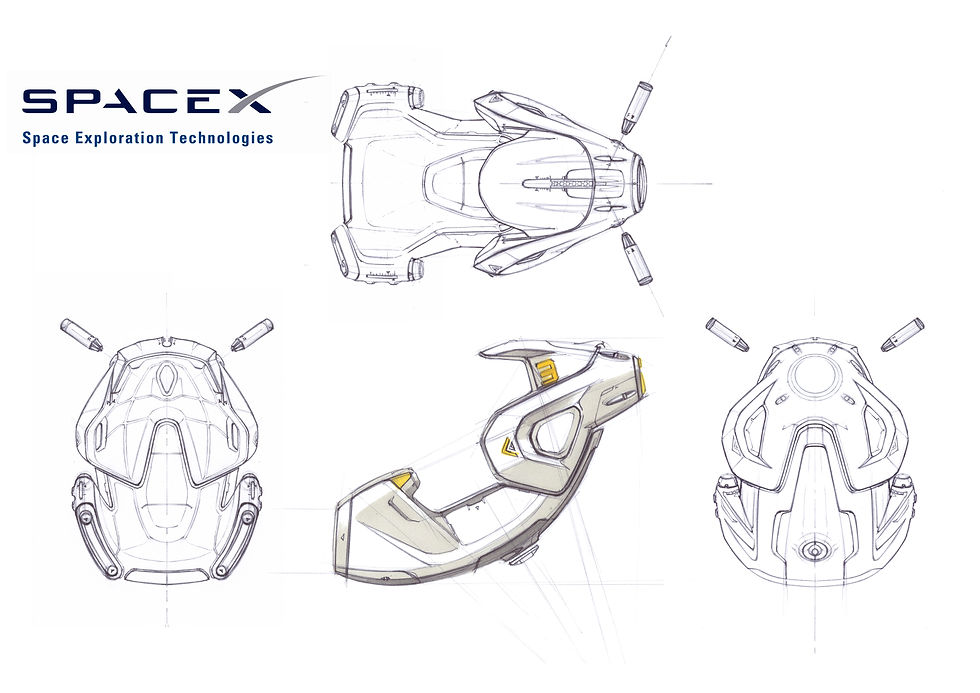

Work delivered and presented involved 3D CAD development of visual concepts, animation of seat functionality and suit storage concept, 2D visual boards of illustrated concepts.

Partnered with Julien Montousse we produced two compelling solutions which challenged the expectations of the scientifically based engineering community.

Project was lead by - Lead Structures Design Engineer - Tonio Martinez

Competing Designers - Anthony Sims/ Daniel Simon/ Nadya Arnaout
